So You Need a Pipe Plug…Now What?
COB Industries manufactures and distributes pipe plugs, pipestoppers and test plugs for just about any application so let us help you determine the right type/style of plug for your situation. When someone calls us about pipe plugs, we basically need to know the answers to a few questions in order to determine what type of plug would be the best option…what size?, what does the plug need to hold back, how much backpressure?, and how long is the plug going to be in place? Other issues (chemicals / temperature, etc.) may have to be considered as well.
Here is a quick breakdown to help determine the type of pipe plug that is needed:
VALVE REPAIRS / TO PLUG OFF BEHIND A VALVE
— Qwik-Gate Plugs
are used to change out valves, add fittings or make line repairs
without shutting off the water or draining the line. These plugs are good for up to 65 PSI and are designed to be
pushed into the pipe and actuated from outside the pipe.
NEED TO SEAL A PIPE BUT ONLY HAVE SMALL ACCESS TO INSERT / REMOVE THE PLUG
— Use the Qwik-Fit Cylinder Plugs
when there is a need to
hold back small amounts (low pressure) of water with reduced access to the pipe. For higher backpressure applications see the Multi-Size Inflatable Stoppers
STANDING WATER, HEAD PRESSURE UP TO 40 FT, BACKPRESSURE UP TO APPROX. 20 PSI

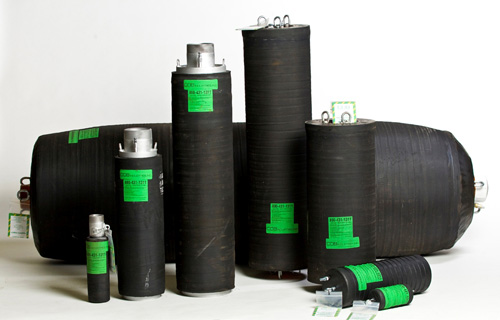

— for pipeline repair / maintenance, water and sewer applications…we offer Multi-Size Inflatable Stoppers
from 2” diameter to 96” diameter, and Disc Plugs
from 24” and up. Both styles offer threaded bypass / test ports.
WATER PRESSURE / BACKPRESSURE up to 150 PSI
— For applications involving higher backpressures or pressure testing up to 150 PSI, we have
inflatable Medium-Pressure Roll-up Plugs
with a braced pressure rating of up to 150 PSI, or the Qwik-Sealfast Plugs
which are self-restraining
plugs (no additional bracing or restraining required) that have set-screws that hold the plug in place and are available with either an inflatable or mechanical seal. These plugs are made to order to suit almost any application.
HYDRO-TESTING / HIGH-PRESSURE APPLICATIONS
— Our Qwik-High Pressure Stoppers
are easy to use, gripper style test plugs that are quick and easy to use,
and rated for up to 3500 PSI.
EXTRA LARGE DIAMETERS, CUSTOM APPLICATIONS, SUBSEA PLUGS, ETC.
— See our Custom Plugs
page or call to speak to one of our design engineers about your application.
Special Note about Pipe Plugs and Pressure — any time a pipe plug has backpressure behind it, the plug needs to be braced or restrained in the pipe, unless the
plug is classified as a “Self-Restraining Plug” such as the Sealfast Plugs, the High-Pressure Stoppers, and many of our Custom Plugs.
COB Industries has been manufacturing and distributing specialty pipeline-related industrial equipment including a wide range of pipe plugs for over 40 years.
