ARGWELD®QUICK PURGE - PIPE PURGING SYSTEMS

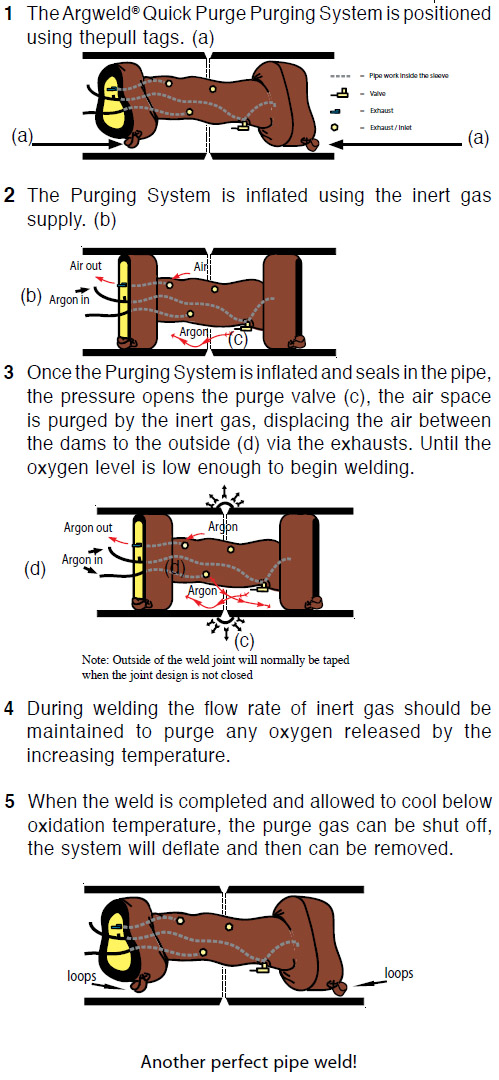

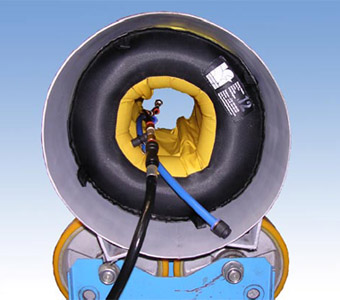

In cases where purging is required to be fast as well as reliable, the Quick Purge Systems can be used. These systems will typically purge 36” pipe diameters to below 0.1% oxygen in less than 10 minutes and all smaller pipes, correspondingly faster. Description Each Quick Purge system is covered with heat protective material on the inside, so that the high temperatures at close proximity to the weld do not damage the devices. Three hoses are available, one for argon inflation and purge, the second for auxilliary purge and the third for gas exhaust via a purge monitor. Operation The system is connected to an argon hose and inserted into the pipe to be welded. The spinal connection hose is shorter than with other devices, to keep the purged volume to a minimum. The majority of the volume between the two dams, is filled with a special heat resisting collar, to keep the purge time low. After positioning the system the argon source is opened, the dams inflated to size and the interspace purged. After a few seconds, the auxilliary purge line can be opened to ensure the fastest possible purge time. In trials these devices have performed many high speed welds under these conditions. 12” Quick Purge System in pipe Section



PurgEye™100 WELD PURGE MONITOR™ PurgEye™100 the newest, most advanced Weld Purge Monitor™ with new features and capabilities that place this monitor way ahead in the field of weld purge monitoring. The Argweld® product line is the only one to offer a complete “family” of Weld Purge Monitors™ for all applications and to suit every budget. With the addition of the exciting new PurgEye™ 100, the industry’s most popular line of purge monitors has raised the bar even higher with the latest in instrumentation and advances in technology.

Don't use “make do” devices as they contain a lot of water, water vapour and air, puts your weld at risk and end up costing you more money. Use the proper tool for the job!
